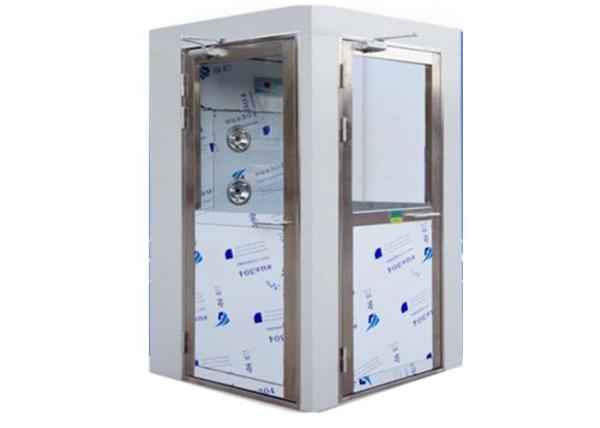

SUS Swing Door Corner Air Shower Room Auto Blowing Design Free
Description
As clean room equipment, installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside , and all stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.
Feature
1. Photoelectric sensor, automatic blow
2. Electronically interlocked with double stainless door
3. Stainless nozzles
4. Audio system
5. With Auto, Stop, Manual, Emergency Stop function keys
6. An Emergency Stop push button: will override the operating cycle to release the door locks immediately
7. Custom sizes are possible
Parameter:
| Model | KEL-AS1 | KEL-AS2 | KEL-AS3 | KEL-AS4 |
| Applicable Number of People | 1 | 3-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) |
| Number of Nozzle | 12 (two Sides) | 24 ( two Sides ) | 36 ( two Sides ) | 48( two Sides ) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×1000×1960 | 800×2000×1960 | 800×3000×1960 | 800×4000×1960 |
| Outside Dimension (mm) | 1700×1240×2200 | 1700×2240×2200 | 1700×3240×2200 | 1700×4240×2200 |
| Power Supply:380V,50HZ, we can made nonstandard voltage for different country. |
| Maximum Power Consumption | 1.5KW | 3KW | 4.5KW | 6KW |
