Pharmaceutical GMP Workshop Customized SUS304 Dynamic Cleanroom Pass Box
CUSTOMIZED DESIGN IS AVAILABLE
Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
90-Degree Custom Pass-Thru Windows
These wall-mounted custom entry systems are designed for cleanrooms whose configuration or space limitations require a 90-degree turn in the pass-through.
Lead-Lined Custom Pass-Thru Chambers
Designed for cleanrooms where radiation protection is required for personnel, these wall-mounted custom pass-through chambers are constructed with a ?” thick,
QQ-L-201F Certified Grade B lead sheet lining and lead-glass viewing windows.
3 Door Custom Pass-Thru Chambers
These wall-mounted pass-through chambers are designed for cleanroom applications where items must be transferred between three separate rooms.
All three doors feature 304 stainless steel construction and 316 stainless steel compression door latches.
Fire-Rated Door Custom Pass-Thru Cabinets
These floor-mounted pass-through cabinets are designed for the transport of larger volumes of flammable materials in laboratory or manufacturing cleanrooms that must meet state and local fire codes.
Features a 90-minute fire-rated door with 10” x 10” viewing window.
Manual Vertical Sliding Doors Custom Pass-Thru Cabinets
Designed for the efficient transfer of large parts and/or wheeled carts, these floor-mounted cleanroom pass-through cabinets save space with sliding vertical doors.
“Lipless” threshold design allows carts to roll in and out smoothly.
HEPA Filtered Custom Pass-Thru Cabinets
These floor-mounted custom entry systems enable the efficient transfer of larger parts and/or wheeled carts into and out of a cleanroom while maintaining control of particulates.
Exceeds USDA HEPA standard by removing 99.99% of airborne contaminants as small as 0.3 micrometers.
Basic Info:
| Product Name | Pass Box/ Pass Thru/ Pass Thru Box |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
| External size (mm) (W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
| Work zone (mm) (W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 |
| Material (Option) | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
| | |

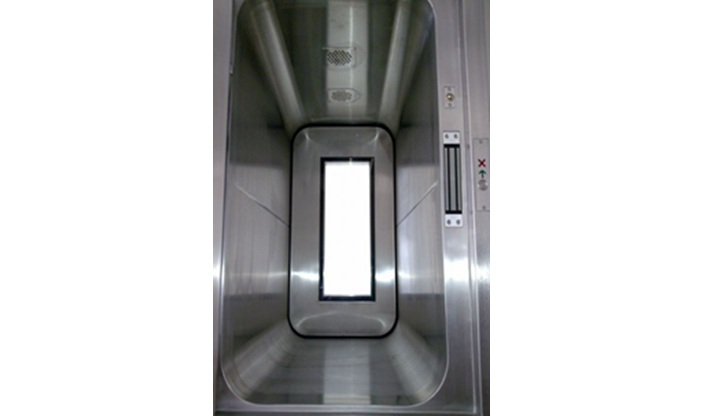

| Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
| UV light | 1 PCS |
| Power supply | 220v/50HZ |
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) |

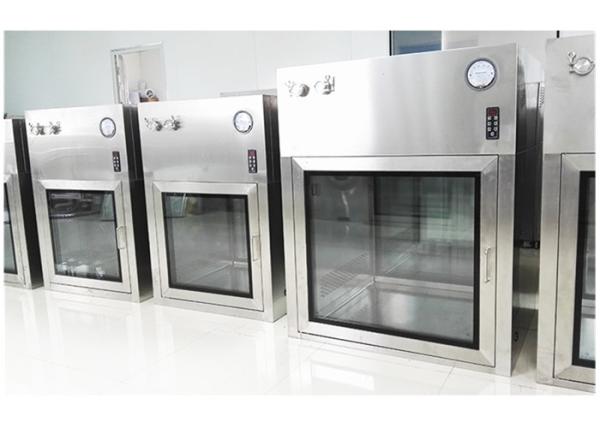

Introduce: Dynamic Pass Box
Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room.
One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.
